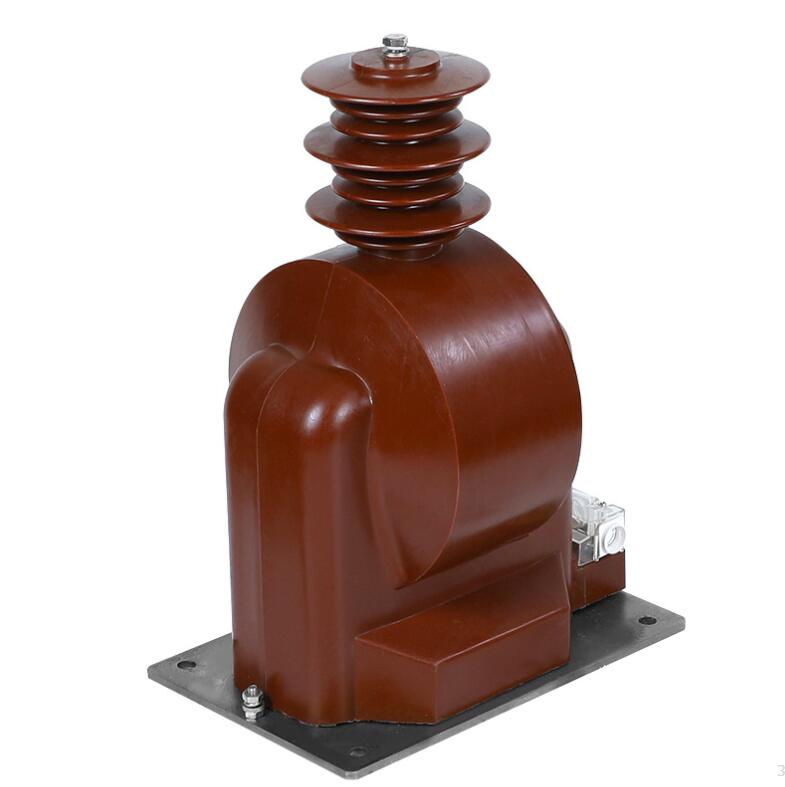

This series of voltage transformers is of epoxy resin casting pillar type fully enclosed structure. The iron core and the winding are cast into one body, and there is a mounting plate at the bottom. JDZ9-35 is single-phase and connected to the opposite phase. That is, the energy measurement and voltage monitoring are separated. JDZX9-35 is single-phase, connected to the ground, the primary A terminal is connected to the phase line, and the N terminal is grounded. JDZXF9-35 has three secondary windings, that is, the energy measurement, voltage monitoring and relay protection are separated. . JDZX9-35G is a fully insulated structure, the primary A terminal is connected to the phase line, and the N terminal is grounded. JDZXF9-35G has three secondary windings, that is, energy measurement, voltage monitoring and relay protection are separated. It is resistant to dirt and moisture, and is also suitable for use in tropical areas. The transformer does not require special maintenance, but only needs to remove the surface dirt regularly. Since the transformer is fully enclosed and cast insulation, it is small in size and light in weight, suitable for installation in any position and direction. . A terminal box is installed at the secondary outlet terminal. There are three outlet terminal holes on the box, and the secondary wires can be drawn from different directions. The wiring is convenient, safe and reliable, and can realize anti-theft measures. Ambient temperature:-10ºC-+40ºC Relative humidity:The average humidity of a day should be no more than 95%. The average humidity of a month should be no more than 90%. Earthquake intensity: not exceed 8 degrees. Saturated vapor pressure the average pressure of a day should be no more than 2.2kPa; the average pressure of a month should be no more Than1.8Kpa; The height above sea level:≤1000 m (Except special requirements) It should be installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.
